EGREGORE SOURCE - USER MANUAL

* authors: chdh
* last version: www.chdh.net/egregore_source/doc/
* date: 2014-04-27
* version: 0.7

This document present egregore source, an adaptation of the software used by chdh for the performance egregore in 2011-2013. It is based on five different audiovisual instruments that you can directly control. They will be played live remotely by chdh for a one time only performance.

TABLE OF CONTENTS

1.INTRODUCTION
2.ARCHITECTURE
3.INTERFACE
4.LIVE PERFORMANCE
5.INFORMATIONS FOR PURE DATA USERS
6.INSTALLATION & RUN
7.TROUBLESHOOTING
8.LINKS

1.INTRODUCTION

ÉGRÉGORE

Egrégore is originally an audiovisual performance realized in 2011 that exploits group movement phenomenas. Complex and expressive behaviors are generated and controlled by a computer and transcribed in sound and image. A crowd of particles deploys itself, reorganizes, blends into living structures more or less coherent, evolving from a chaotic movement towards a cohesive group.

SOURCE

Egregore - source is an edition that aims to archive and document the performance: all the elements in égrégore - optimized for a standard personal computer - are supplied: the instrument created for the performance, the software that enabled the creation of the performance and a document of usage, all under a free license and with source code. A digital version is freely downloadable on the P2P networks and a usb key with all this data will as well be available.

DISTRIBUTED PERFORMANCE

This instrument will be played live remotely by chdh for a one time only performance. The distribution of the code allows to use this "physical" dispersion as a new performance vector. The different personal computers used to decode the contents of the key, geographically distributed around the world, united to each other by internet constitute the "stage" where takes place this new representation of égrégore. This event allows all, thanks to the distributed software, to connect at the same moment, to meet and to attend a new version of the performance.

2.ARCHITECTURE

DESCRIPTION

In egregore source, there is 377 particules. Each particule is controlled by the five instruments, the resulting movement is the sum of the displacements generated by all the instruments. These instruments are mostly based on physical modeling and chaotic equations algorithms, resulting in expressive and pseudo naturals behaviors. The instruments play on the relationship between the particules: some of them used totally independent generators for each element, and some connect all the particules together.

The rendering window shows only the particules movement: for each particule, a curve is drawn between its actual position and its three precedent position, resulting in a big curve when the particule is moving fast and nothing if the particule is static.

Each instrument has a specific sound synthesis engine. Each synthesizer is designed to represent at best the movement of the particules.

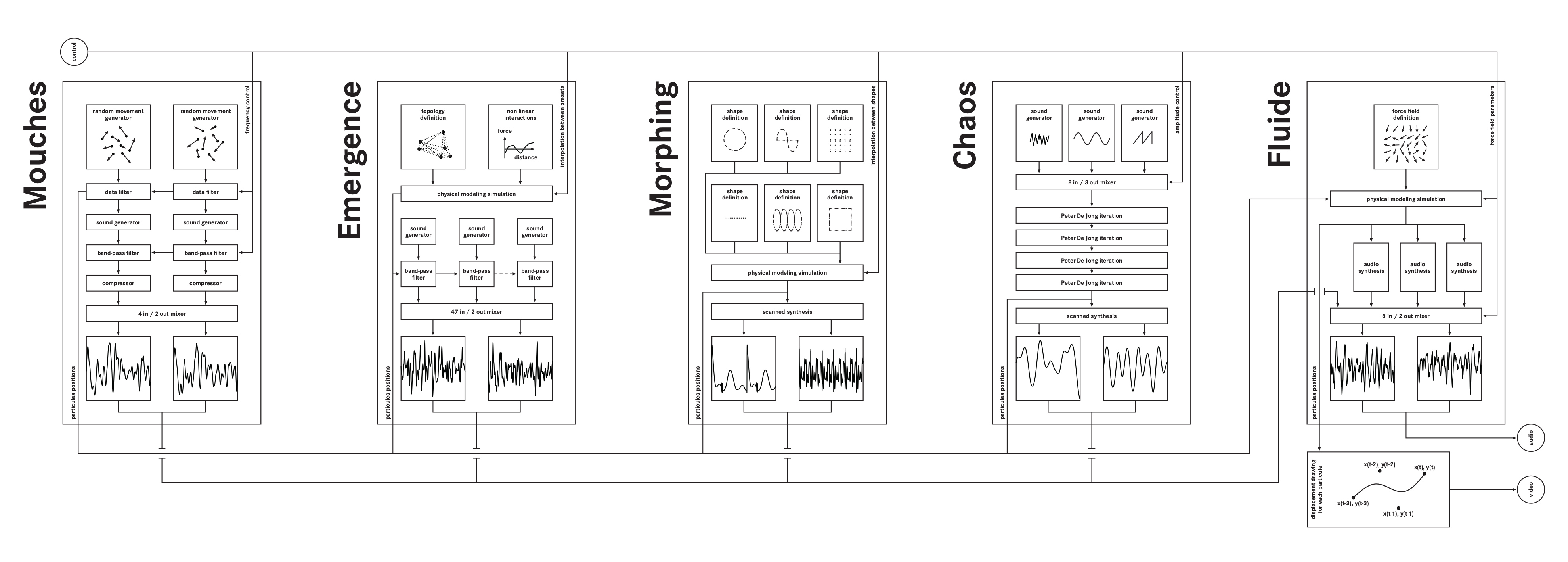

ALGORITHM MAP

3.INTERFACE

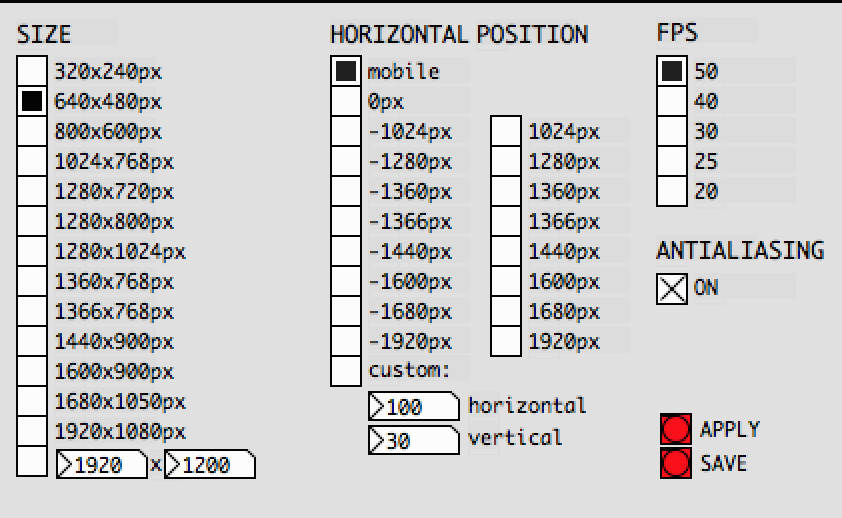

VIDEO CONFIGURATION

You can adjust the video settings by clicking on the [video] button. This section allows the control of the rendering window size and position amongst some others parameters:

* size : size of the rendering window in pixels.
* position : position of the rendering window. Use mobile if you don't need fullscreen. If you want to display the rendering on another screen, be careful of the position of the second screen compared to the principal. For example if your main screen is 1280x720 pixels and your second screen is 1920x1080 pixels positioned on the left, you should use an offset of -1920px and a size of 1920x1080 to have fullscreen on the left screen.
* fps : frame per second of the rendering. If your computer is not powerful enough, you can decrease it.
* antialiasing : antialiasing increase image quality but increase computation time.
* apply : apply the selected settings now.
* save : save the settings. They will be used at next launch.

If you want to reset the settings, see troubleshooting.

SOUND CONFIGURATION

You may need to configure your sound output. To do that click on the "media->audio settings" menu and choose your sound output. See Pd documentation for more informations.

MIDI CONFIGURATION

To configure your midi interface, click on the "media->MIDI settings" menu and choose your midi input. See Pd documentation for more informations.

You can assign your midi faders to any parameter:
* click on the [midi] button
* check the "midi learn" toggle
* move a parameter with the mouse
* move a fader on your midi device
* You can repeat the "move a parameter with mouse, move a fader" sequence to assign other parameters
* uncheck the "midi learn" toggle
If needed you can reset your settings by clicking the "reset midi assignations" button

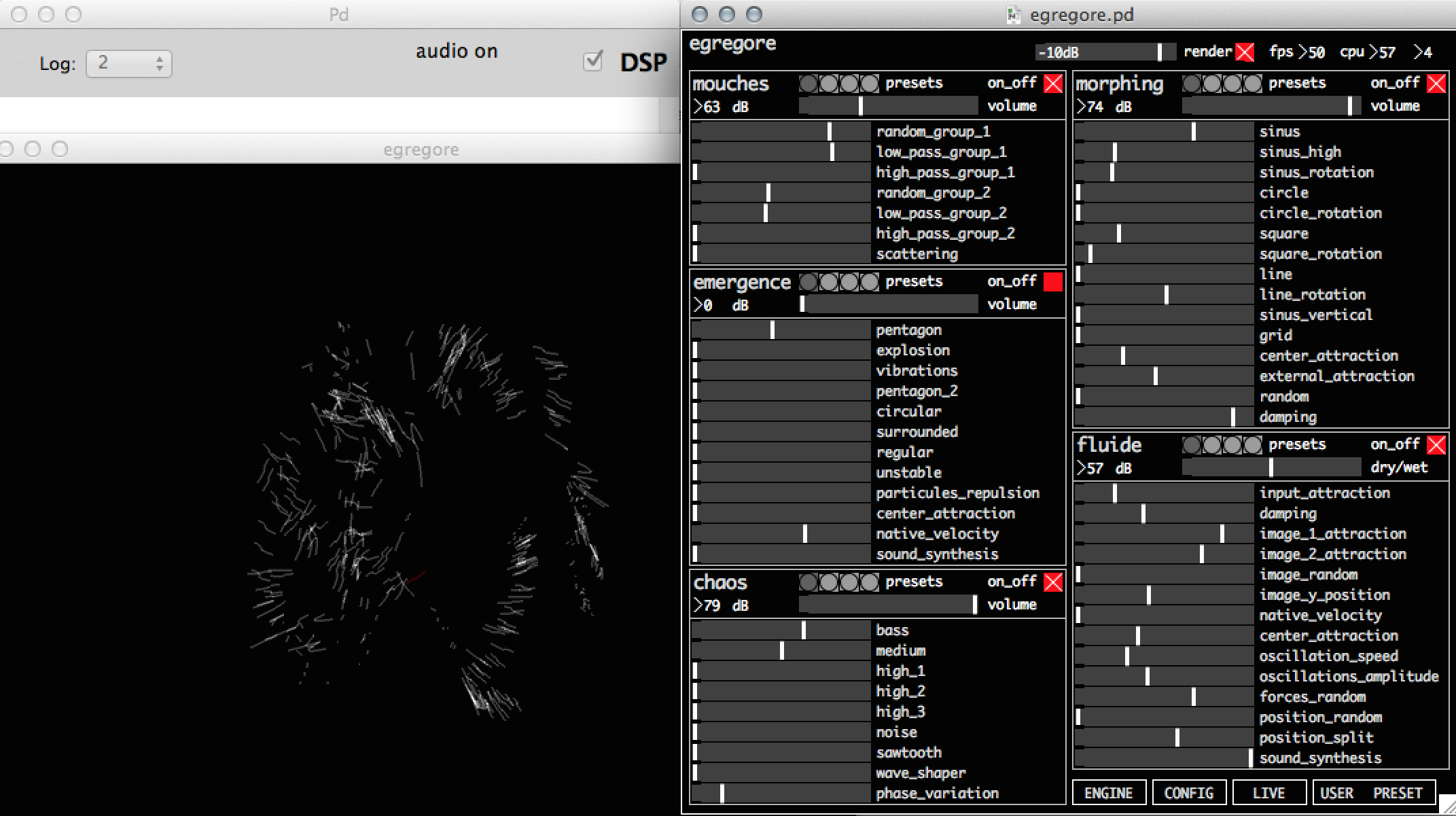

CONTROLLING THE INSTRUMENTS

The software is divided in five instruments: mouches, morphing, chaos, emergence and fluid. You can control each one of these instruments separately:
* on/off : turn on/off this instrument. Turn off unused instrument to save CPU.
* presets : click to recall some predefined preset. The first preset set the instrument in a state where it did not produce movement.
* xx dB : output sound level of this instrument.
* volume : adjust the visual and sound volume of this instrument.
* faders : controls of the instrument. Each one of this parameter modify the state of the algorithm and thus the sound and video generated. Move these faders to play with the instrument.

INSTRUMENTS DESCRIPTION

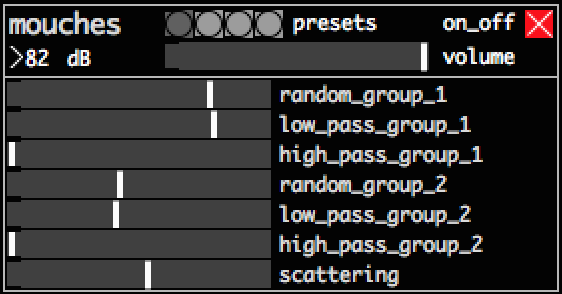

Mouches
Mouches (flies in french) is a simple mix of noise and random movements. Every particle movement is random and independent. The sound is based on noise generators. The control are divided in two groups of flies.
* random group n : amplitude of random
* low pass group n : property of the random generator
* high pass group n : property of the random generator
* scattering : visual dispersion

Emergence
In emergence, every particle is connected to all the others. The modification of the link between them creates emerging complex structures. Sound synthesis is based on the speed and displacement of particules.
* pentagon, explosion, ...., unstable : different kind of connection between particules
* native velocity : increase the base speed of particles
* sound synthesis : mix between three sound synthesis engine

Chaos
Chaos is based on the Peter de Jong strange attractors family. The input of this attractor is a mix of different simple sound synthesizers. A few iterations of the attractors are computed for each of this sound samples, resulting in tables that are directly seen as sound and particule positions.
* bass, medium, ..., sawtooth : sound at the entrance of the attractor
* wave shaper : effect on the input sound
* phase variation : movement variation velocity

Morphing
Morphing is defined by a set of 377 mobile particles attached to different shape composed by 377 points: circle, square, .... The user can modify the rigidity between the mobile particle and each one of these shapes, resulting in mixed and unstable forms. The particule positions tables are directly read as sounds.
* sinus, square, ... grid : attraction to each shape
* random : add a random position
* damping : modification of the "resistance" of the environment

Fluide
Fluide is more an effect than a proper instrument. It takes as an input the position of the particules of the other instrument and "throw" them like bowls in a 3d topology. The sound is based on the particules displacments.
* input attraction : influence of the other instruments particules position
* damping : resistance of the environment
* image n attraction : influence of the 3d topology
* sound synthesis : mix between three sound synthesis engine

MONITORING

On the top right, you have info about the state of your computer:

* -10dB : master volume. Increase or decrease as needed.
* render : turn off the rendering if needed (sound + video).
* fps : frame per second. It should stay at 50, otherwise try to reduce the value in [config]. Use 40 or 30 for example.
* cpu : percent of usage of the two cpus. It should not go beyond 90% or you risk to have audio drop-out (clicks).

OTHER BUTTONS

* User Preset : Here you can store and recall the state of all the instruments. When a preset is empty, it is displayed dark.
* Live : Informations and control about the live performance. cf. live
* Engine : Here you can see the Pure Data patch running egregore_source. cf. pd users

4.LIVE PERFORMANCE

The instrument will be played live by chdh for a one time only performance. The computing will be done locally on your computer. To attend the show, just launch the application at the right time. To see the performance live, your computer must be connected to Internet, and egregore - source must have access to port 80. If you see a text in the rendering window at the launching of the application, everything is fine. Otherwise there is a problem in your Internet connection.

After the performance, you'll be able to download the data and replay the performance when you want. To do that, click on the [live] button on the bottom right of the interface to open the live section that gives you information about the live performance.

5.INFORMATIONS FOR PURE DATA USERS

You can use any part of this instrument for yourself. The application is build in Pd 0.45.3. To open the engine layer, click on the [engine] button. Here you can edit, copy and paste in other Pd patchs.

There should be no conflict with existing pd installation. Startup script should start pd with it's own preference file, and do not overwrite preferences.

The main patch is composed of several parts:
* instruments : create sound and movements for 377 particules.
* bus : add the sound and position generated by all instruments.
* local server : manage the control parameters.
* interface : display the interface and send data to the local server.
* render : displays the particules displacements.
* internet reception : manage the data from Internet for live performance.

Due to some minor instabilities, the downloading part of the patch has been isolated. The startup script start this part in -nogui mode and restart it if it close. All the pure data patchs are in the "src" folder. The main patch is egregore.pd and the downloading patch is abs/param_down_sub.pd .

6.INSTALLATION & RUN

REQUIREMENTS

Hardware :
This patch should run on any computer with average performance since 2011.
* CPU : a minimum of 2 core is mandatory. Intel core 2 duo 2GHz is a minimum
* Graphic card : Intel HD 4000 works. Most ATI or NVIDIA GPU since 2010 should work.

Software :
The software needed depends of your operating system and its version.
* Linux 32 and 64 bits : Pure Data version >= 0.43 and Gem version >= 0.93.3 have to be installed on your computer. The easiest way to get both is to download Pd-extended, see: http://puredata.info/downloads/pd-extended
* OSX from 10.5 to 10.8 : Nothing have to be installed.
* OSX 10.9 : You may need to install Xquartz. Launch the software and follow the indications.
* Windows XP / Vista / seven / 8 Nothing have to be installed.

INSTALLATION & RUN

Download the last version at : http://sourceforge.net/projects/chdh-egregore.

* Linux : Uncompress the egregore_source.tar.gz, move the directory where you want on your computer and double-click on egregore.sh
* OSX : Uncompress the egregore_source.zip, move the egregore_source.app where you want on your computer and click on it.
* Windows : Uncompress the egregore_source.zip, move the directory where you want on your computer and double-click on egregore.bat

7.TROUBLESHOOTING

* If you have problem with your video settings and can't launch the application anymore, you can delete the config.txt file in the src folder. A new one with basic value will be generated.
* To watch the live performance the application need to be connected to Internet. If you see a message in the rendering window announcing the show everything is ok, otherwise check your firewall settings.
* There is a known problem in some version of Gem/Ubuntu where the window can't recreate itself. This doesn't allow you to easily modify the video settings. To do that, choose your settings, click save and relaunch the software.
* If you have another Linux distribution than Ubuntu, you may need to recompile the sources. To do that do
  $  cd $PATH/egregore_source_X.X/src/lib
  $  make
Visit the chdh website to have news and infos
http://www.chdh.net

or contact us directly by mail
info@chdh.net
